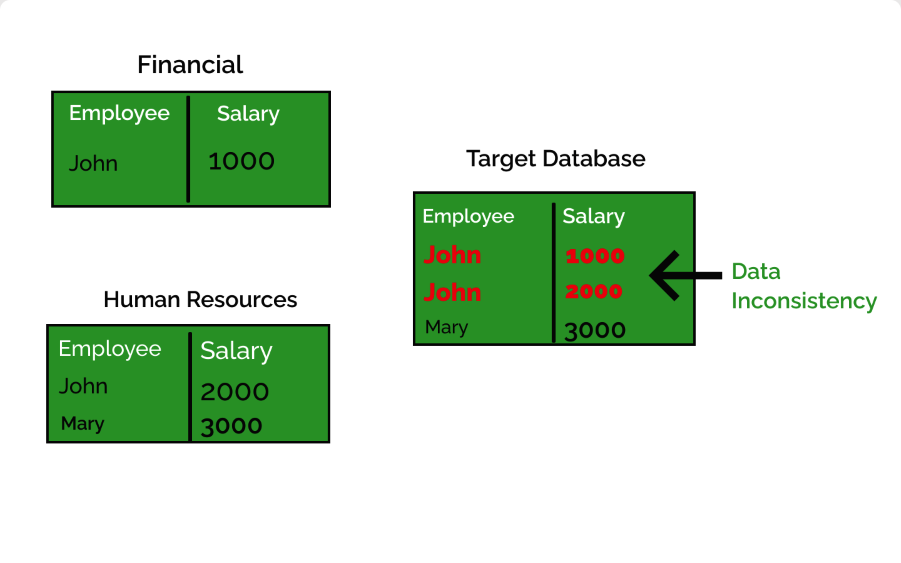

데이터 불일치 (Data Inconsistency)

동일한 데이터가 데이터베이스 내의 여러 위치에서 서로 다른 형식이나 값으로 존재하는 상황

Data Inconsistency
Source: https://www.geeksforgeeks.org/what-is-data-inconsistency-in-dbms/

발생 조건

데이터 불일치가 발생하는 주요 조건:

  1. 동시성 작업
  • 여러 프로세스나 스레드가 동시에 데이터를 수정할 때
  • 트랜잭션이 적절히 관리되지 않을 때
  1. 분산 환경
  • 네트워크 지연이나 실패가 발생할 때
  • 데이터 복제 과정에서 시간 차이가 발생할 때
  1. 캐싱 문제
  • 캐시 무효화가 제대로 이루어지지 않을 때
  • 캐시와 원본 데이터 간의 동기화 실패
  1. 시스템 오류
  • 하드웨어 오류, 네트워크 문제, 소프트웨어 버그 등으로 인해 발생할 수 있다.
  1. 데이터 통합 문제:
  • 서로 다른 소스의 데이터를 통합할 때 발생할 수 있다

해결책 및 방지책

  1. 데이터 표준화: 데이터 형식, 값, 표현을 일관되게 만든다.
  2. 데이터 검증: 데이터 입력 시 유효성 검사를 수행한다.
  3. 데이터 정제: 오류를 식별하고 수정하는 과정을 거친다.
  4. 데이터 거버넌스: 데이터 관리에 대한 명확한 정책과 절차를 수립한다.
  5. 동기화 메커니즘: 분산 시스템에서 데이터 동기화를 위한 알고리즘을 사용한다.

실제 시스템에서의 예방책

  1. 데이터 감사: 정기적인 데이터 감사를 통해 불일치를 식별한다.
  2. 자동화 도구 사용: 데이터 품질 관리 도구를 활용하여 불일치를 자동으로 탐지한다.
  3. 데이터 프로파일링: 데이터의 특성을 이해하고 잠재적 문제를 파악한다.
  4. 버전 관리: 데이터 변경 이력을 추적하여 불일치 발생 시 원인을 파악한다.

고려사항 및 주의사항

  1. 성능 영향: 데이터 일관성 유지 메커니즘이 시스템 성능에 미치는 영향을 고려해야 한다.
  2. 확장성: 대규모 분산 시스템에서의 데이터 일관성 유지 방법을 고려해야 한다.
  3. 사용자 교육: 데이터 입력 및 수정 시 주의사항에 대해 사용자를 교육해야 한다.
  4. 비즈니스 규칙 반영: 데이터 일관성 규칙에 비즈니스 로직을 반영해야 한다.

주의 사항 및 모범 사례

  1. 버전 관리
  • 모든 데이터 변경에 버전 번호 부여
  • 낙관적 락킹 구현
  • 충돌 감지 및 해결 메커니즘 구축
  1. 캐시 전략
  • Cache-Aside 패턴 사용
  • 적절한 TTL(Time-To-Live) 설정
  • 캐시 무효화 전략 수립
  1. 동기화 메커니즘
  • 분산 락 사용
  • 이벤트 기반 동기화
  • 멱등성 보장
  1. 모니터링 및 감사
  • 버전 이력 관리
  • 변경 로그 기록
  • 불일치 감지 알림

실제 구현시 고려사항

  1. 확장성
  • 수평적 확장을 고려한 설계
  • 샤딩 전략 수립
  • 복제 지연 관리
  1. 성능
  • 캐시 적중률 최적화
  • 인덱스 전략 수립
  • 배치 처리 활용
  1. 복구 전략
  • 백업 및 복구 계획
  • 롤백 메커니즘
  • 데이터 정합성 검증

모범 사례

  1. 단일 진실 소스(Single Source of Truth) 유지
  2. 데이터 품질 메트릭 정의 및 모니터링
  3. 데이터 소유권 및 책임 명확화
  4. 지속적인 데이터 품질 개선 프로세스 구축
  5. 데이터 불일치 해결을 위한 명확한 워크플로우 수립

파이썬 예제로 보는 데이터 불일치

다음은 데이터 불일치가 발생할 수 있는 상황과 이를 해결하는 방법을 보여주는 예제

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
import threading
import time
from datetime import datetime
from typing import Dict, Optional
from dataclasses import dataclass

@dataclass
class UserProfile:
    user_id: int
    name: str
    last_updated: datetime
    version: int

class UserProfileService:
    def __init__(self):
        # 메인 저장소
        self._storage: Dict[int, UserProfile] = {}
        # 캐시
        self._cache: Dict[int, UserProfile] = {}
        self._lock = threading.Lock()

    def get_profile(self, user_id: int) -> Optional[UserProfile]:
        """
        사용자 프로필을 조회하는 메서드
        캐시 확인 후 없으면 저장소에서 조회
        """
        # 캐시에서 먼저 확인
        cached_profile = self._cache.get(user_id)
        if cached_profile:
            return cached_profile

        # 저장소에서 조회
        with self._lock:
            profile = self._storage.get(user_id)
            if profile:
                # 캐시 업데이트
                self._cache[user_id] = profile
            return profile

    def update_profile(self, user_id: int, name: str) -> UserProfile:
        """
        사용자 프로필을 업데이트하는 메서드
        버전 관리를 통한 동시성 제어
        """
        with self._lock:
            current_profile = self._storage.get(user_id)
            new_version = (current_profile.version + 1) if current_profile else 1

            # 새 프로필 생성
            updated_profile = UserProfile(
                user_id=user_id,
                name=name,
                last_updated=datetime.now(),
                version=new_version
            )

            # 저장소 업데이트
            self._storage[user_id] = updated_profile
            # 캐시 무효화
            if user_id in self._cache:
                del self._cache[user_id]

            return updated_profile

def simulate_concurrent_updates():
    """
    동시성 업데이트 시뮬레이션
    """
    service = UserProfileService()

    def update_worker(user_id: int, name: str):
        try:
            profile = service.update_profile(user_id, name)
            print(f"Updated profile: {profile}")
        except Exception as e:
            print(f"Error updating profile: {e}")

    # 여러 스레드에서 동시에 업데이트 시도
    threads = []
    for i in range(5):
        t = threading.Thread(
            target=update_worker,
            args=(1, f"User_{i}")
        )
        threads.append(t)
        t.start()

    # 모든 스레드 완료 대기
    for t in threads:
        t.join()

    # 최종 상태 확인
    final_profile = service.get_profile(1)
    print(f"\nFinal profile state: {final_profile}")

if __name__ == "__main__":
    simulate_concurrent_updates()

실제 시스템에서의 해결 전략

데이터베이스 수준

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
from sqlalchemy import create_engine, Column, Integer, String, DateTime
from sqlalchemy.ext.declarative import declarative_base
from sqlalchemy.orm import sessionmaker
from sqlalchemy.sql import text

Base = declarative_base()

class User(Base):
    __tablename__ = 'users'

    id = Column(Integer, primary_key=True)
    name = Column(String)
    version = Column(Integer, default=1)
    last_updated = Column(DateTime)

    __table_args__ = {
        'postgresql_partition_by': 'RANGE (last_updated)'
    }

def update_with_optimistic_locking(session, user_id, new_name, expected_version):
    """
    낙관적 락킹을 사용한 업데이트
    """
    result = session.execute(
        text("""
        UPDATE users
        SET name = :name,
            version = :new_version,
            last_updated = NOW()
        WHERE id = :user_id
        AND version = :expected_version
        """),
        {
            'name': new_name,
            'new_version': expected_version + 1,
            'user_id': user_id,
            'expected_version': expected_version
        }
    )

    if result.rowcount == 0:
        raise ConcurrentModificationError("데이터가 이미 수정되었습니다")

캐시 동기화 전략

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
import redis
from functools import wraps

class CacheManager:
    def __init__(self):
        self.redis_client = redis.Redis(host='localhost', port=6379)

    def cache_with_version(self, key_prefix, timeout=300):
        """
        버전 관리가 포함된 캐시 데코레이터
        """
        def decorator(f):
            @wraps(f)
            def wrapper(*args, **kwargs):
                cache_key = f"{key_prefix}:{args[0]}"
                version_key = f"{cache_key}:version"

                # 캐시된 버전 확인
                cached_version = self.redis_client.get(version_key)

                if cached_version:
                    cached_data = self.redis_client.get(cache_key)
                    if cached_data:
                        return cached_data

                # 새로운 데이터 가져오기
                data = f(*args, **kwargs)

                # 캐시 업데이트
                pipe = self.redis_client.pipeline()
                pipe.set(cache_key, data, ex=timeout)
                pipe.incr(version_key)
                pipe.execute()

                return data
            return wrapper
        return decorator
